KYL-U20U 1km transmittion distance connect to PC usb port directly Rf modems KYLU20U manufacturer from China Shenzhen KYL Communication Equipment Co.,Ltd

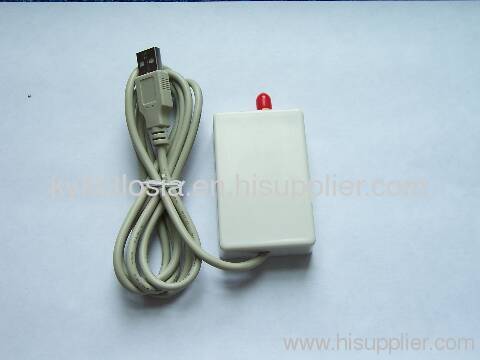

KYL-U20U 1km transmittion distance connect to PC usb port directly Rf modems

Price:	25.0 USD
Payment Terms:	T/T,WU,Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KYLU20U

Production Capacity: 500000/month

Delivery Date: 2-3 days

RF power: 50mW

Frequency Band: 433mhz

modulation: FSK/GFSK

Dimension: 47 x 26 x 10mm

Means of Transport: Air

Packing: standard packing

Power output: DC5V

Interface: usb

Data Rate: 1200,2400,4800,9600,19200 b...

Transmission distance: 600m-1000m

Interface data format: 8E1/8N1/8O1

KYL-U20U is a kind of micro power wireless transceiver data module. With small size, low power consumption as well as good stability and reliability,

Technical specification :

Transmission distance : 600m-1000m

Dimension : 47 x 26 x 10mm

Weight :22g

Power output: DC5V

RF power: ≤50mw;

Receiving current : <20mA;

transmitter current : <40mA;

Sleep current: <20uA;

Receive sensitivity:-120dbm(1200bps);-115dbm(9600bps)

Interface: USB

Frequency Band: 433mHz (400-470MHz available)

Data Rate: 1200,2400,4800,9600,19200 bps (pls let us know what data rate you need)

operating temperature: -35~+75centigrade (industrial standard )

modulation: FSK/GFSK

8 channels ,extendable

Frequency Stability: ±2.5ppm Industrial

Interface data format: 8E1/8N1/8O1

Other Application Field:

* Automatic Meter Reading (AMR);

* Wireless alarm and security systems;

* Building automation, security systems, wireless monitor;

* Wireless data transmission, automatic data collection system;

* Wireless POS, PDA wireless smart terminal;

* RF transmitter, Wireless electronic display screen and Queuing machine;

* Wireless telemetry; remote control and access control system;

* Wireless modem automobile inspection and four-wheel orientation;

* Wireless sensor, Industrial wireless remote control;

* Data communication in the aspects of railway, oil field, dock and army.

* LED display in thruway and public place;

* Point to multi-point wireless network.

If you have any questions ,pls ask Sarah :
sales01(at)rf-data(dot)com

Skype:rf-data
