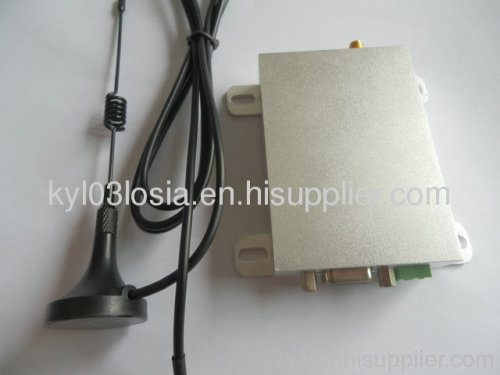

5W VHF/UHF Wireless Audio Modem 10KM Distance 144MHz/230MHz/450MHz/433Mhz for transmitting voice and data 5W Wireless KYL-600H manufacturer from China Shenzhen KYL Communication Equipment Co.,Ltd

5W VHF/UHF Wireless Audio Modem 10KM Distance 144MHz/230MHz/450MHz/433Mhz for transmitting voice and data 5W Wireless

Price:	115.0 USD
Payment Terms:	T/T,WU,Paypal
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: KYL-600H

Production Capacity: 500000/month

Delivery Date: 2-3 days

RF Module: Long range

Power output: 12V

Data Rate: 1200/2400bps

Transmission distance: 10Km @1200bps

Means of Transport: Air

Packing: standard packing

audio module: voice transceiver

UHF/VHF: Radio module

RF power: 5W

Interface: TTL/RS-232/RS-485 selectabl...

Dimension: 96x58x18mm

KYL-600H, the data radio module adopt double phase-lock loop, double VCO structure, high stability TXCO, integration RF and so on advanced technique;

Specifications :

Transmission distance : 10Km @1200bps

Dimension : 96x58x18mm

Power output :12V

RF power :5W

Receiving current :<30mA

transmitter current : <1.5A;

Sleep current: <1mA;

Interface:TTL/RS-232/RS-485 selectable (Pls tell us the interface you need)

Frequency Band: 230MHz/150MHz (pls tell us the Frequency you need ?)

Data Rate: 1200/2400bps (pls tell us the data rate you need ?)

Operating temperature :-30~+70C

8channels ,extendable

Applications:

Marine filed, public traffic, interphone system of taxi, industrial automatic control, electric power schedule, water conservancy monitor, signal collection and transmission of railway system, oil extraction and transportation control, measure of oil or water wells, hydrological monitor, weather information transmission, environment monitor, container management, goods management in supermarket, forest protection, intelligent building, wireless beaconing, geological reconnoiter, mobile location, military training, public security, medical ward, remote control, detecting, and others automatic control fields.
